ترمومتر اینفرارد یونیتی UT309C
ترمومتر اینفرارد یونیتی
مدل: UT309C
ترمومتر لیزری -۳۵ تا ۶۰۰ درجه سانتیگراد، دو لیزره، IP65. ضد ضربه تا ارتفاع ۳ متر.

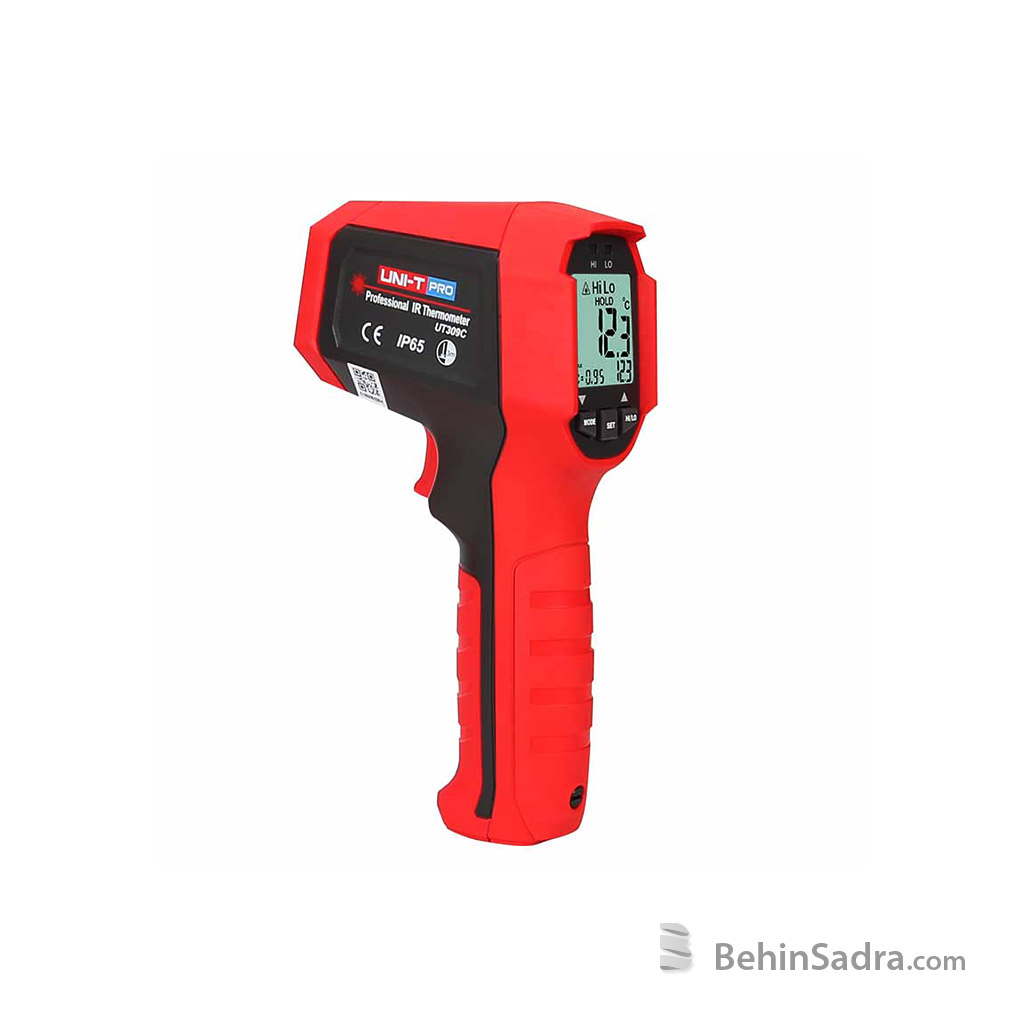

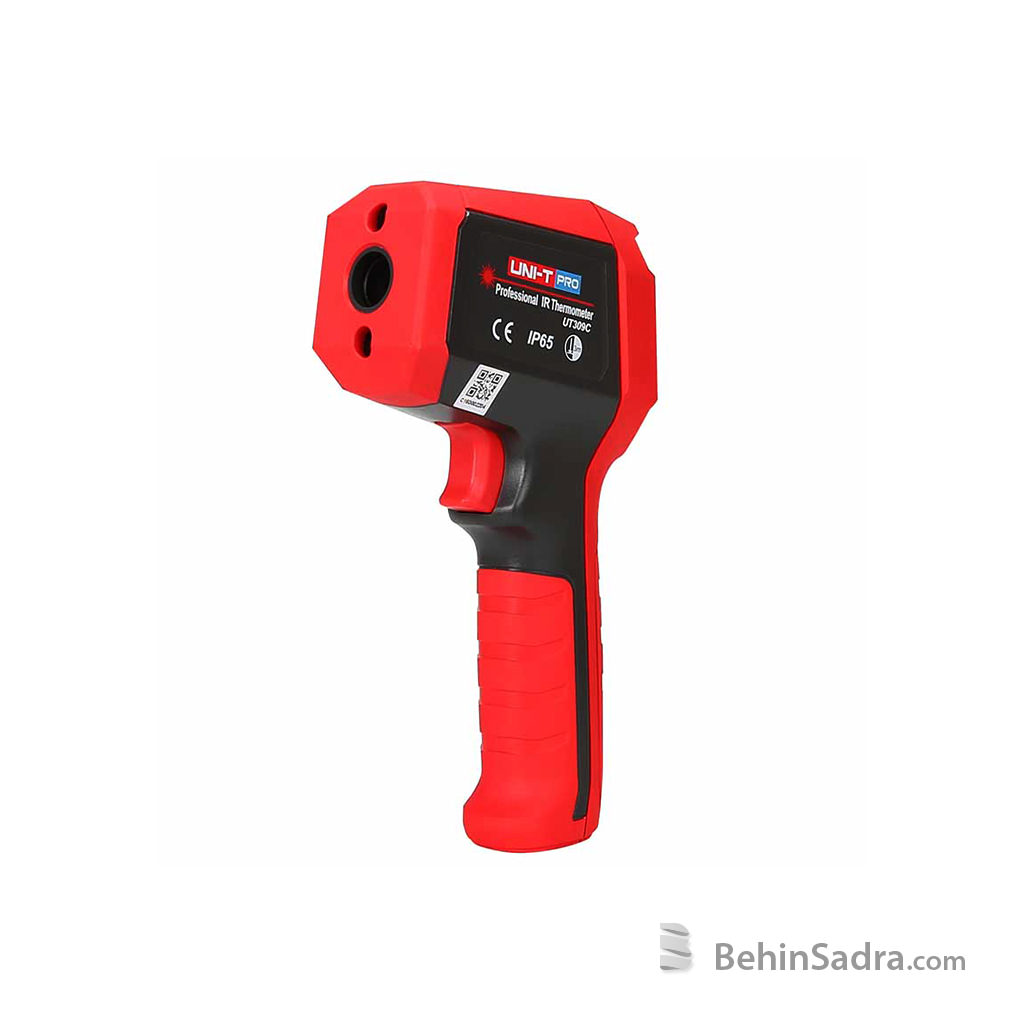

UNI-T UT309C Professional Infrared Thermometer
Features
۱. ۳m drop proof, IP65
۲. Large LCD display with backlight
۳. MAX/MIN/AVG/DIF modes
۴. High/Low temperature alarm with LED indication
۵. Dual laser measurement to enhance accuracy
۶. Lock measurement
۷. Adjustable emissivity: adjust according to different testing materials
۸. Data hold, auto power off
| Specifications | Range |
| Model | UT309C |
| Temperature | -35 ~ 600°C |
| -31 ~ 1112°F | |
| Temperature testing precision | ≥۰°C: ±۱.۸°C or ±۱.۸% ≤۰°C: +/-(1.8°C + 0.1°C/°C) ≥۳۲°F: ±۳.۶°F or ±۱.۸% ≤۳۲°F: +/-( ±۳.۶°F + 0.2°F/°F) |
| Repeated accuracy | ±۱.۰°C or ±۰.۸% |
| Display resolution | ۰.۱°C/0.1°F |
| D:S (Distance and Spot Diameter Ratio) | ۱۲:۱۰ |
| Response time | ۲۵۰ms (95% of reading) |
| Emissivity (adjustable, step length: 0.01) | ۰.۱۰ ~ ۱.۰ adjustable |
| Laser count | Dual laser |
| Laser type | type 2 (Ⅱ) |
| Laser power | ＜۱mW |
| Laser wavelength | ۶۳۰nm ~ 670nm |
| Spectral response | ۸μm ~ 14μm |
| Features | |
| °C/ °F selection | √ |
| Laser switch | √ |
| Display hold(s) | ۸ |
| Data hold | √ |
| Auto power off | √ |
| Low battery indication | √ |
| Lock measurement | √ |
| MAX | √ |
| MIN | √ |
| Difference | √ |
| Mean | √ |
| High temperature alarm (red LED) | √ |
| Low temperature alarm (blue LED) | √ |
| LCD backlight | √ |
| Power-off memory | √ |
| Protection grade | IP65 |
| Drop test | ۳m |
| Tripod mounting holes | √ |
| General Characteristics | |
| Power supply | ۹V battery (6F22) |
| LCD size | ۳۲mm × ۲۹mm |
| Device color | Red and grey |
| Device weight | ۲۹۲g |
| Device size | ۱۸۹mm × ۱۱۸mm × ۵۵mm |

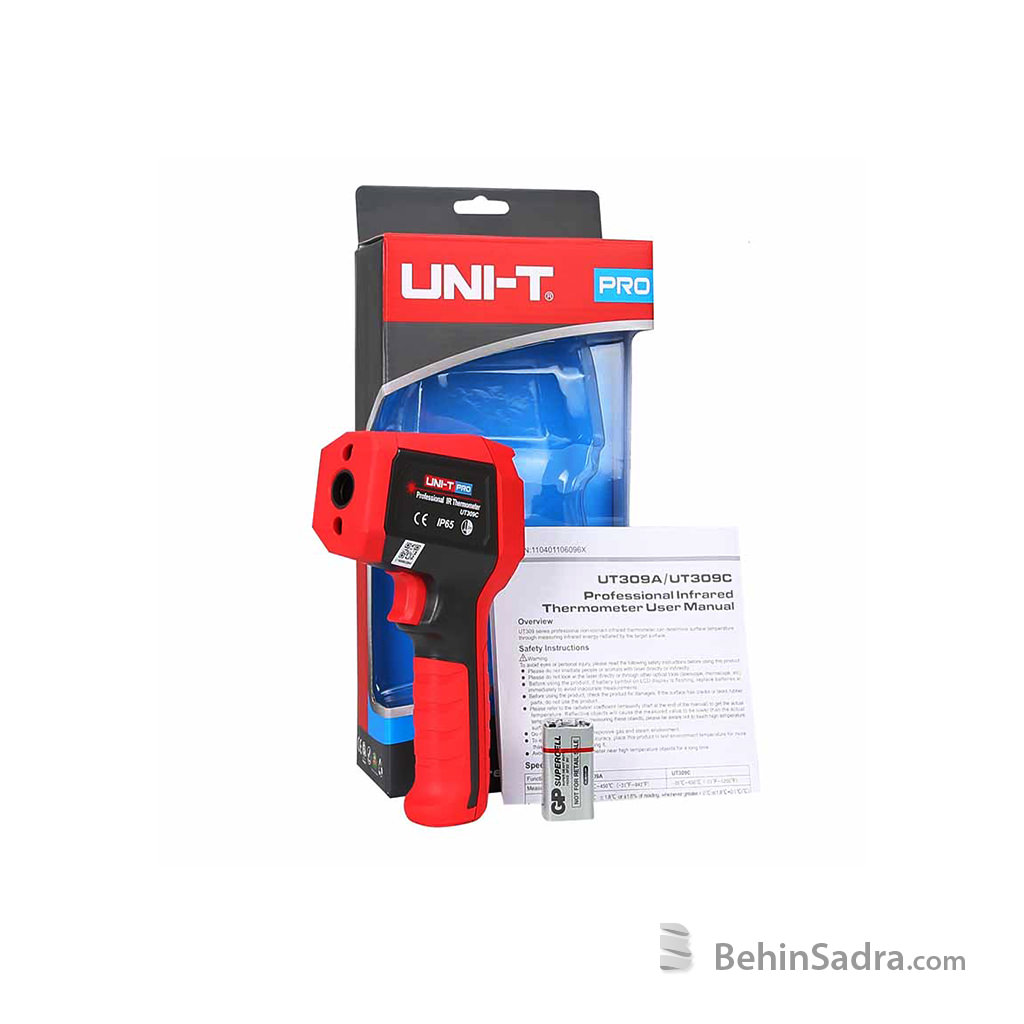

| Standard accessories | Battery |
| Standard individual packing | Blister, user manual |
| Standard quantity per carton | |
| Standard carton size | |
| Standard carton gross weight | |
