رله شیشه ای امرن سری MY
رله شیشهای امرن سریMY
مدل: MY2IN 24DC ،MY4IN 24DC و MY4IN 220/240AC
رله شیشه ای امرن سریMY

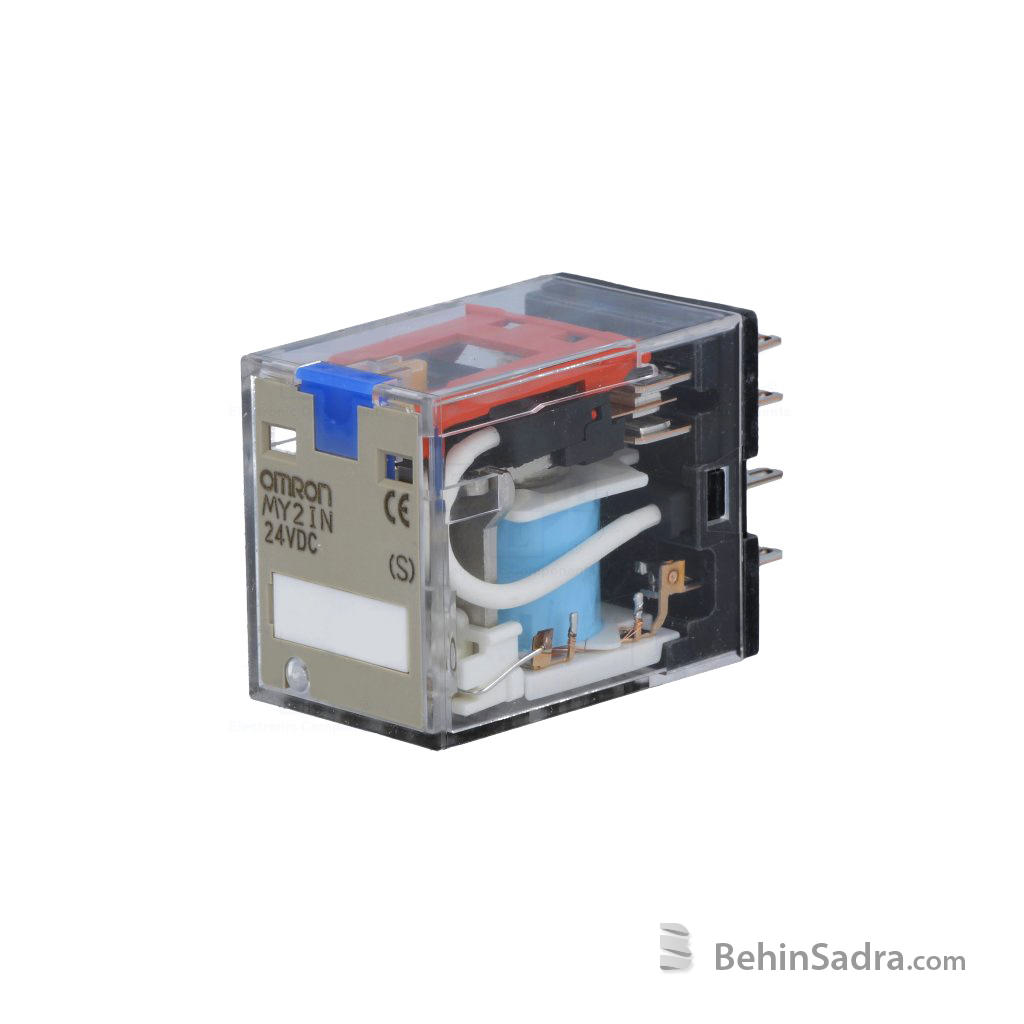

- MY2IN 24DC

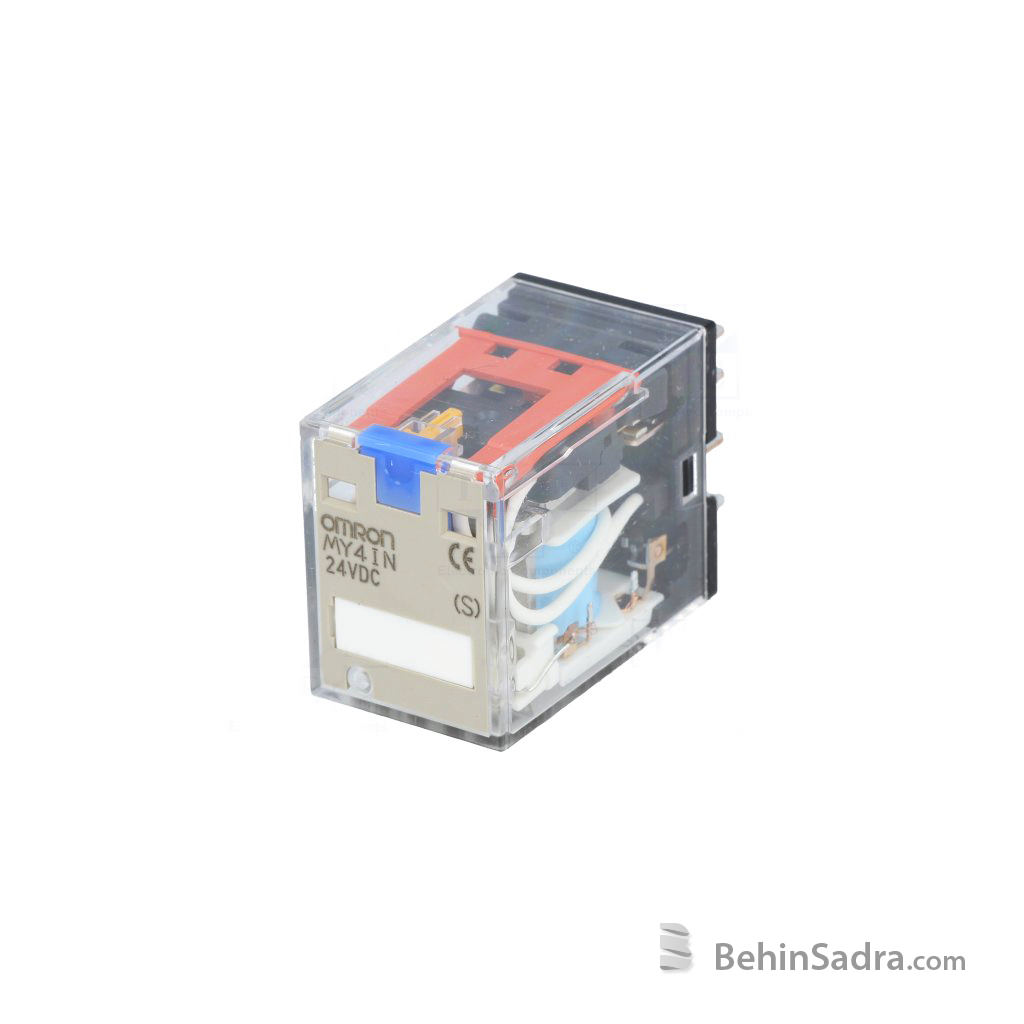

- MY4IN 24DC

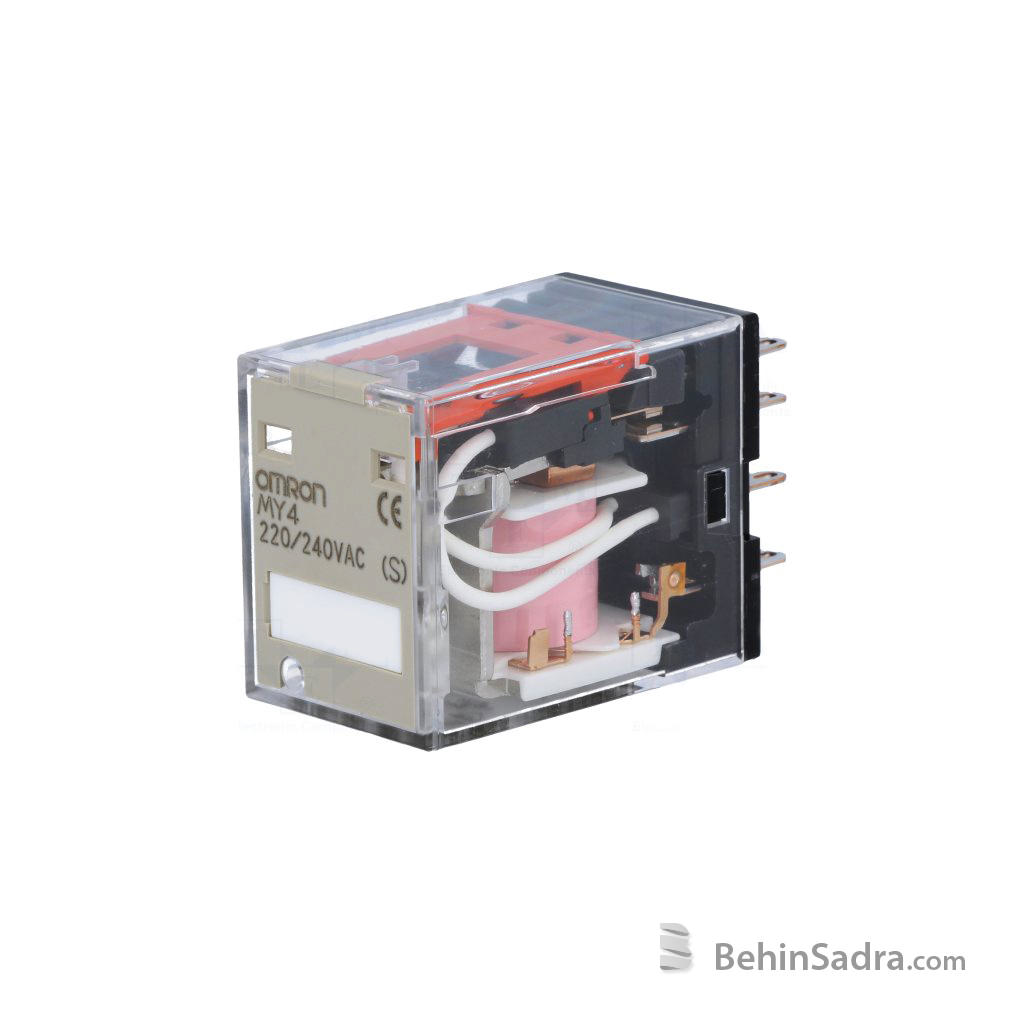

- MY4IN 220/240AC
ساخت شرکت Omron ژاپن.
Omron Miniature Power Relays
MODEL: MY2IN 24DC (S), MY4IN 24DC (S), MY4IN 220/240AC (S)
• Reduces wiring work by 60% when combined with the PYF-PU Push-In Plus Socket (according to actual OMRON measurements).
• Now lead-free to protect the environment.
• VDE certification (Germany).
• Different colors of coil tape for AC and DC models to more easily distinguish them.
• MY(S) models with latching levers added for easier circuit checking.
توضیحات بیشتر
Model Number Structure
| Structure | Relays with Plug-in Terminals
 |
PCB terminals  |
Case- surface mounting  |
||||
|---|---|---|---|---|---|---|---|
| Classification | Number of poles |
With operation indicator |
Without operation indicator |
With latching lever |
|||
| Standard models (compliant with Electrical Appliances and Material Safety Act) |
۲ | MY2N * | MY2 * | MY2IN(S) * | MY2-02 | MY2F | |
| Bifur- cated |
MY2ZN | MY2Z | |||||
| ۳ | MY3N | MY3 | MY3-02 | MY3F | |||
| ۴ | MY4N * | MY4 * | MY4IN(S) * | MY4-02 | MY4F | ||
| Bifur- cated |
MY4ZN * | MY4Z * | MY4ZIN(S) * | MY4Z-02 | MY4ZF | ||
| Models with diode for coil surge absorption (DC coil specification only)  |
۲ | MY2N-D2 * | MY2-D * | MY2IN-D2(S) * | — | — | |
| Bifur- cated |
MY2ZN-D2 | MY2Z-D | |||||
| ۳ | MY3N-D2 | MY3-D | |||||
| ۴ | MY4N-D2 * | MY4-D * | MY4IN-D2(S) * | ||||
| Bifur- cated |
MY4ZN-D2 * | MY4Z-D * | MY4ZIN-D2(S) * | ||||
| Models with CR circuit for coil surge absorption (AC coil specification only)  |
۲ | MY2N-CR * | MY2-CR * | — | |||
| ۴ | MY4N-CR * | MY4-CR * | MY4IN-CR(S) * | ||||
| Bifur- cated |
MY4ZN-CR * | MY4Z-CR * | MY4ZIN-CR(S) * | ||||
| Models with high contact reliability |
۴ | Bifur- cated |
— | MY4Z-CBG | |||
| Plastic sealed models | ۴ | MYQ4N | MYQ4 | MYQ4-02 | |||
| Bifur- cated |
MYQ4Z | MYQ4Z-02 | |||||
| Latching models (coil latching) |
۲ | MY2K | MY2K-02 | ||||
| Hermetic models | ۴ | MY4H | MY4H-0 | ||||
| Bifur- cated |
MY4ZH | MY4ZH-0 | |||||
Note: 1. The models in this table are UL/CSA certified. This is indicated with a certification mark on the products.
(This does not include models with high contact reliability or plastic sealed, latching, or hermetically sealed
models.)
2. Models with an asterisk (*) next to them are new versions.
3. The standard models with plug-in terminals, models with coil surge absorption diodes, and models with coil
surge absorption CR circuits were used in combination with the PYF[]A-E, PYF[]-S and PYF-[]-PU for the
EC Declaration of Conformity. These products display the CE Marking.
4. Products cannot be manufactured for the cells with a diagonal line. Ask your OMRON representative for details
on manufacturing products for cells containing “—” in the above table.
(This does not include models with high contact reliability or plastic sealed, latching, or hermetically sealed
models.)
2. Models with an asterisk (*) next to them are new versions.
3. The standard models with plug-in terminals, models with coil surge absorption diodes, and models with coil
surge absorption CR circuits were used in combination with the PYF[]A-E, PYF[]-S and PYF-[]-PU for the
EC Declaration of Conformity. These products display the CE Marking.
4. Products cannot be manufactured for the cells with a diagonal line. Ask your OMRON representative for details
on manufacturing products for cells containing “—” in the above table.
