توضیحات

کلمپ آمپرمتر کیوریتسو ۲۰۳

کلمپ آمپرمتر AC/DC کیوریتسو

مدل KT203 / KEW203

سایت سازنده محصول

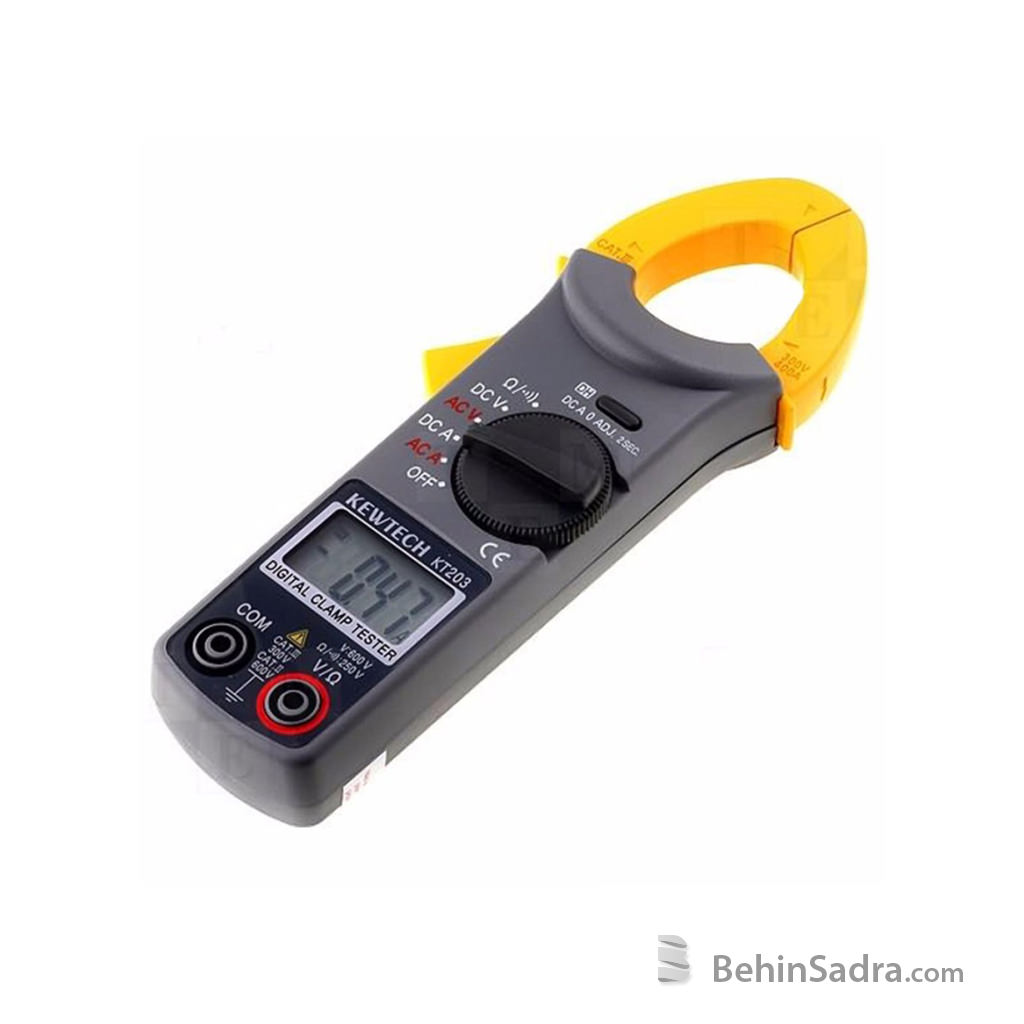

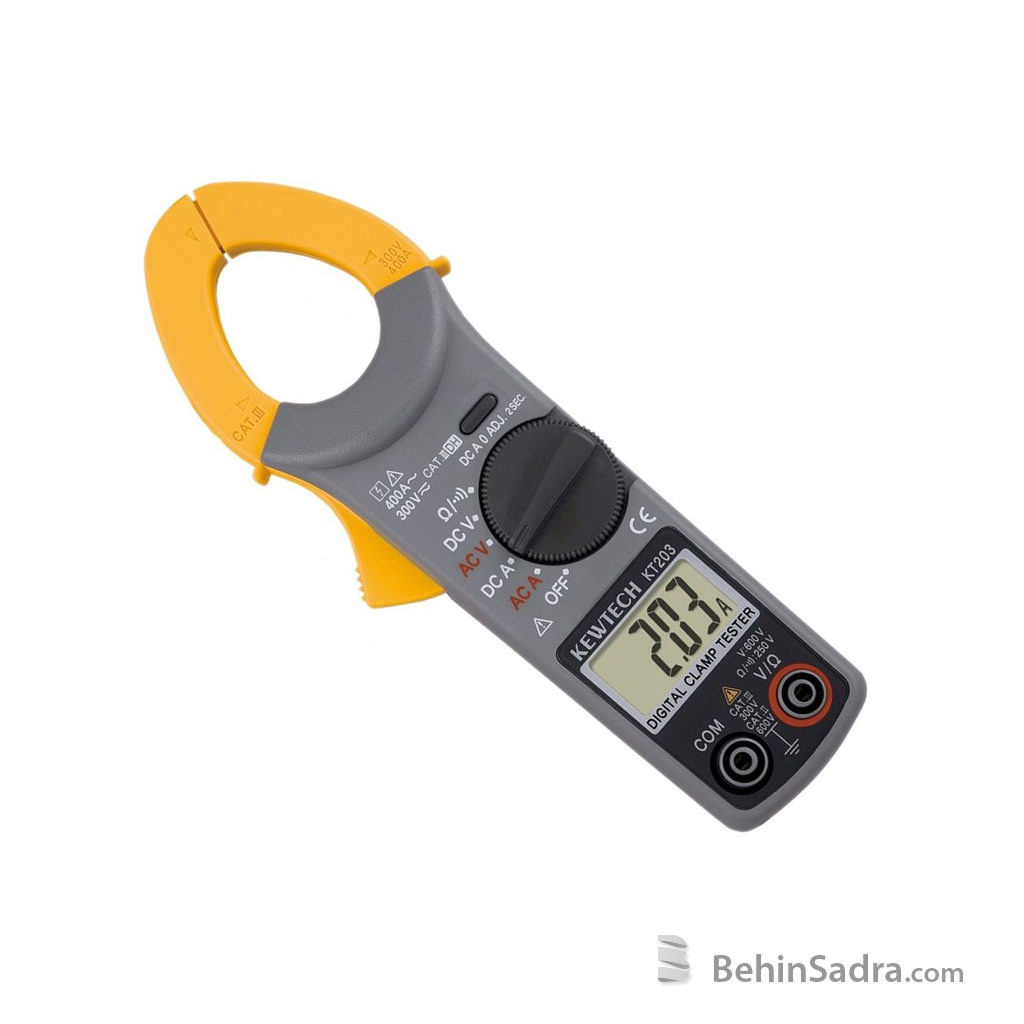

KYORITSU AC/DC digital clamp meter

MODEL: KEW 203 / KT203

• Popular contractor orientated clamp meter – strong and robust
• ۰.۰۱A accuracy below 40A means it measures down to 10mA
• Measures DC current with a DC adjust – ideal for Solar Installations and automotive applications

KEY FEATURES

• Measures Current up to 400A AC/DC
• Measures Voltage up to 600V AC/DC
• Resistance
• Continuity buzzer
• ۳۳mm jawSleep feature
• Data hold memory function
• Display: 4000 counts
• Complies to IEC61010-1 (CAT. III) UL3111 & VDE0411 300V

More Info:

Meter type
AC/DC digital clamp meter

Max. diameter of measured cable
۳۰mm

Kind of display used
LCD 3,75 digit 13mm

Sampling
۲,۵x/s

DC current measuring range
۰,۰۱…۴۰/۴۰۰A

DC current measuring accuracy
±(۳% + ۸ digits)

AC current measuring range
۰,۰۱…۴۰/۴۰۰A

AC current measuring accuracy
±(۳% + ۸ digits)

DC voltage measuring range
۰,۱…۴۰۰/۶۰۰V

DC voltage measuring accuracy
±(۱,۵% + ۵ digits)

AC voltage measuring range
۰,۱…۴۰۰/۶۰۰V

AC voltage measuring accuracy
±(۲% + ۵ digits)

Resistance measuring range
۰,۱…۴۰۰/۴۰۰۰Ω

Resistance measuring accuracy
±(۲% + ۵ digits)

Continuity test
acoustic signal for R<50Ω

Pollution degree
۲

Dimensions
۱۸۷ x 69 x 39mm

Weight with battery
۲۰۰g

Power supply
۲ batteries 1,5V LR03 (AAA)

Optional equipment
KT203-F soft cover

Measurement
AC voltage, DC voltage, AC current, DC current, resistance

Conform to the norm
EN61010 300V CAT III, EN61010 600V CAT II

Measuring instrument features:automatic power-off
HOLD function
display zeroing function in DCA measurements
Standard equipment:batteries
test leads
Additional informationGross weight: 0.35 kg
Guarantee (months): 12

توضیحات تکمیلی
