سنسور کلمپ کیوریتسو KEW 8129
سنسور کلمپ کیوریتسو
مدل KEW 8129
سنسور کلمپ کیوریتسو KEW 8129

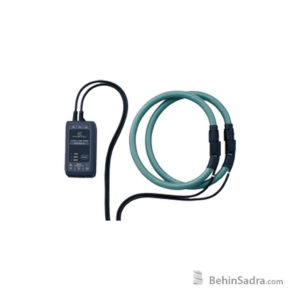

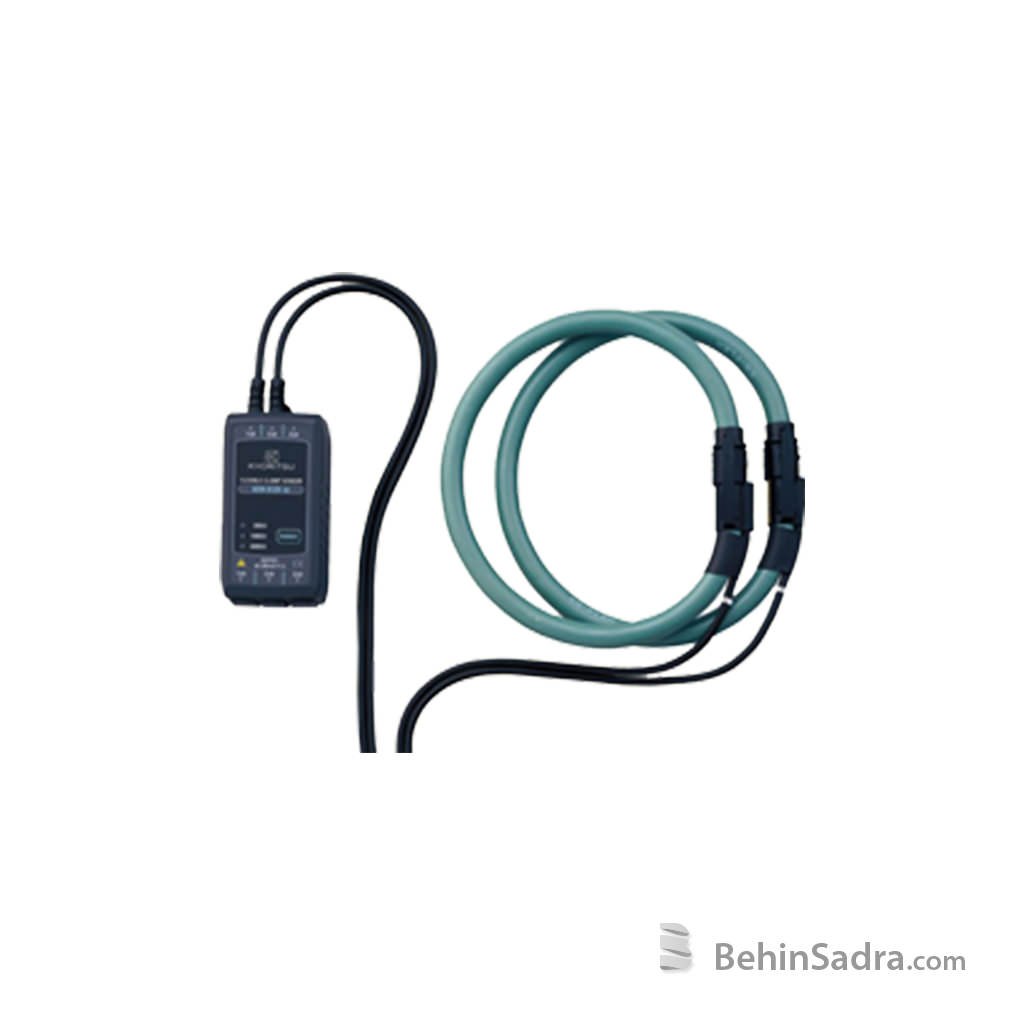

KYORITSU Flexible Clamp Sensor
MODEL: KEW 8129
Ø۱۵۰mm
KEW8129-01 (for 1ch)
KEW8129-02 (for 2ch)
KEW8129-03 (for 3ch)
• Flexible for various test fields
• Can measure AC current up to 3000A
• Flexible and light weight by the air core coil used at the sensor part
• Measurable conductor size: max Φ۱۵۰mm
• Designed to meet the international safety standard IEC 61010-1 CAT III 600V
Applicable model *5010 *5020 6305 6315
* When you use the sensors with KEW5010/5020, please check the “Applicable model list” to check if your KEW5010/5020 can be used with the sensors.
| Conductor size | max.Ø۱۵۰mm |
|---|---|
| Rated current | ۳۰۰/۱۰۰۰/۳۰۰۰A |
| Output voltage | ۳۰۰A Range : AC500mV/AC300A (1.67mV/A) ۱۰۰۰A Range : AC500mV/AC1000A (0.5mV/A) ۳۰۰۰A Range : AC500mV/AC3000A (0.167mV/A) |
| Accuracy | ±۱.۰%rdg (45 – 65Hz) |
| Phase shift | within ±۱° |
| Cable length | Sensor part : approx. 2m Output cable : approx. 1m |
| Output connector | MINI DIN 6PIN |
| Output impedance | ۱۰۰Ω or less |
| Applicable standards | IEC 61010-1, IEC 61010-2-032 CAT III 600V Pollution degree2, IEC 61326 |
| Operating temperature & humidity range | ۰ – ۵۰ºC, relative humidity 85% or less (no condensation) |
| Dimensions | ۱۱۱(L) x 61(W) x 43(D) mm (except for protrusions) |
| Weight | ۸۱۲۹-۰۱ (for 1ch) Approx. 410g ۸۱۲۹-۰۲ (for 2ch) Approx. 680g ۸۱۲۹-۰۳ (for 3ch) Approx. 950g |
| Included Accessories | ۸۱۲۹-۰۱ (for 1ch) Instruction Manual, 7199 (Output Cable) x1, 9137 (Carrying Case) ۸۱۲۹-۰۲ (for 2ch) Instruction Manual, 7199 (Output Cable) x2, 9137 (Carrying Case) ۸۱۲۹-۰۳ (for 3ch)Instruction Manual, 7199 (Output Cable) x3, 9137 (Carrying Case) |
