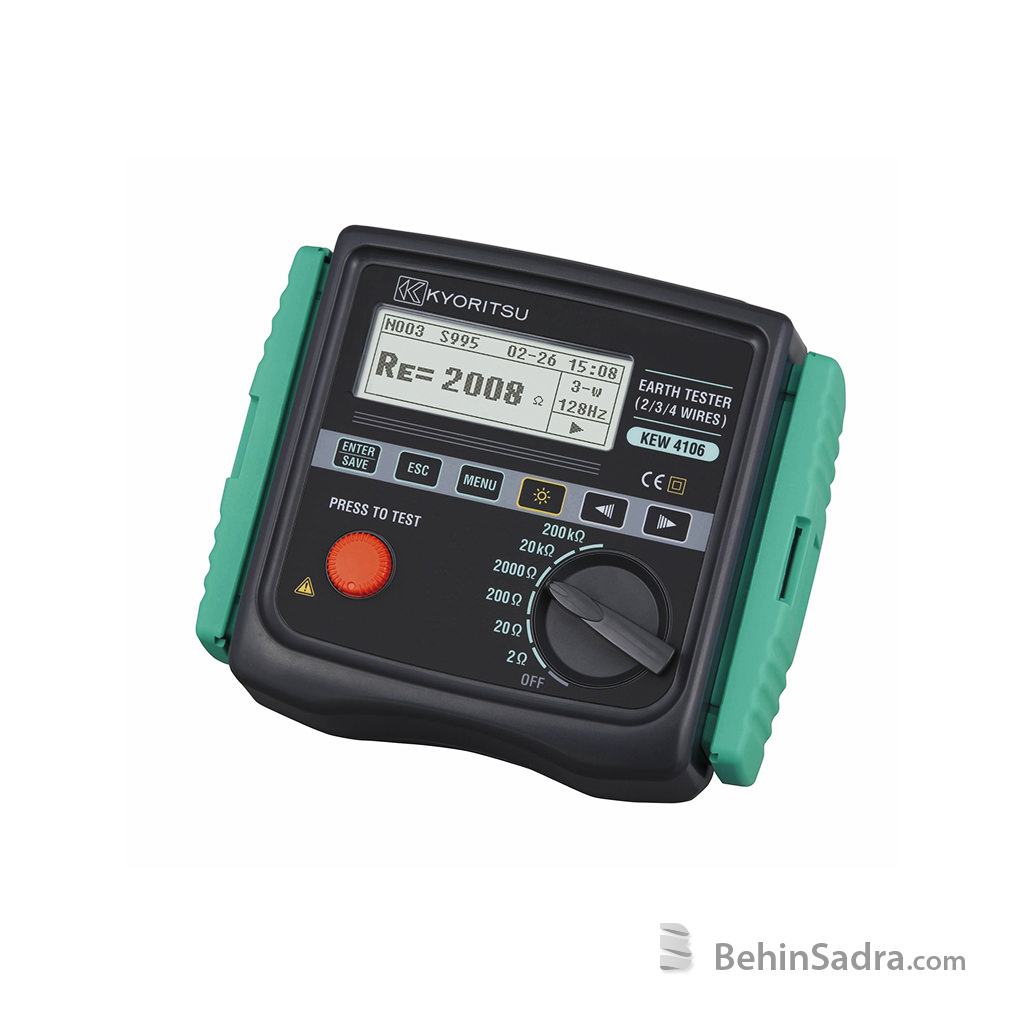

ارت سنج کیوریتسو ۴۱۰۶
ارت‌سنج دیجیتال چهار سیمه کیوریتسو
مدل KEW 4106
ارت سنج دیجیتال چهار سیمه کیوریتسو مدل ۴۱۰۶ دستگاهی فوق پیشرفته با دقت بسیار بالا جهت اندازه گیری انواع چاه های ارت و تست مقاومت زمین می باشد.
- رنج اندازه گیری مقاومت از ۰ تا ۲۰۰ کیلو اهم
- قابلیت فیلتر نویز های محیطی
- قابلیت اندازه گیری به دو صورت خودکار و دستی
- داری سیستم هشدار در صورت بالا بودن بیش از حد صدا
- دارای نور پس زمینه جهت خوانایی در مناطق کم نور
- دارای حافظه داخلی جهت ثبت تا ۸۰۰ نقطه
- قابلیت اتصال به رایانه توسط کابل USB
- طراحی مقاوم با حفاظت IP54
- وزن ۹۰۰ گرم
KYORITSU Earth Resistance & Resistivity Tester
MODEL: KEW 4106
• High test current up to 80mA yielding resolution of 0.001Ω on 2Ω range.
• Advanced Filtering method (based on FFT Fast Fourier Transform) reduces noise interference for obtaining stable measurements.
• Automatic and Manual selection of the Test Current Frequency in four bands (94/105/111/128Hz). In Automatic mode, KEW 4106 will select the most suitable Frequency.
• Several sub-results can be shown on the display: Resistance of the Auxiliary Earth Spikes, Frequency of Test Current, Voltage and Frequency of Interference (noise), Residual Resistance Rk, etc.
• Warning for excessive noise and high Auxiliary Earth Spikes resistance.
• Large Graphic Display with backlight for readings in poorly illuminated areas.
• Up to 800 measurement results can be saved in the memory and recalled on the display.
• The stored results can be transferred to a PC using the “KEW Report” software and a USB adaptor (Model 8212-USB) which are included.
• Robust design with IP54 protection.
• Advanced Filtering method (based on FFT Fast Fourier Transform) reduces noise interference for obtaining stable measurements.
• Automatic and Manual selection of the Test Current Frequency in four bands (94/105/111/128Hz). In Automatic mode, KEW 4106 will select the most suitable Frequency.
• Several sub-results can be shown on the display: Resistance of the Auxiliary Earth Spikes, Frequency of Test Current, Voltage and Frequency of Interference (noise), Residual Resistance Rk, etc.
• Warning for excessive noise and high Auxiliary Earth Spikes resistance.
• Large Graphic Display with backlight for readings in poorly illuminated areas.
• Up to 800 measurement results can be saved in the memory and recalled on the display.
• The stored results can be transferred to a PC using the “KEW Report” software and a USB adaptor (Model 8212-USB) which are included.
• Robust design with IP54 protection.
توضیحات بیشتر
| Function | Range | Resolution | Measuring range | Accuracy |
|---|---|---|---|---|
| Earth resistance Re (Rg at ρ measurement) |
۲Ω | ۰.۰۰۱Ω | ۰.۰۳ – ۲.۰۹۹Ω | ±۲%rdg±۰.۰۳Ω |
| ۲۰Ω | ۰.۰۱Ω | ۰.۰۳ – ۲۰.۹۹Ω | ±۲%rdg±۵dgt (*1) | |
| ۲۰۰Ω | ۰.۱Ω | ۰.۳ – ۲۰۹.۹Ω | ||
| ۲۰۰۰Ω | ۱Ω | ۳ – ۲۰۹۹Ω | ||
| ۲۰kΩ | ۱۰Ω | ۰.۰۳k – 20.99kΩ | ||
| ۲۰۰kΩ | ۱۰۰Ω | ۰.۳k – 209.9kΩ | ||
| Auxiliary earth resistance Rh, Rs |
۸% of Re+Rh+Rs | |||
| Earth resistivity ρ |
۲Ω | ۰.۱Ω·mm – 1Ω·m Autoranging |
۰.۲ – ۳۹۵.۶Ω·m | ρ=۲×π×a×Rg (*2) |
| ۲۰Ω | ۰.۲ – ۳۹۵۶Ω·m | |||
| ۲۰۰Ω | ۲۰ – ۳۹.۵۶kΩ·m | |||
| ۲۰۰۰Ω | ۰.۲ – ۳۹۵.۶kΩ·m | |||
| ۲۰kΩ | ۲.۰ – ۱۹۹۹kΩ·m | |||
| ۲۰۰kΩ | ||||
| Series interference voltage Ust (A.C only) (*3) |
۵۰V | ۰.۱V | ۰ – ۵۰.۹Vrms | ±۲%rdg±۲dgt (50/60Hz) |
| ±۳%rdg±۲dgt (40 – 500Hz) | ||||
| Frequency Fst |
Autoranging | ۰.۱Hz ۱Hz |
۴۰Hz – 500Hz | ±۱%rdg±۲dgt |
| Measuring method | Earth resistance: Fall-of-potential method (currents and voltages measured via the Probes) Measurement method of Earth Resistivity (ρ): Wenner 4-pole method Series interference voltage (earth voltage) RMS Rectifier (between the E-S Terminals) |
|||
| Memory capacity | ۸۰۰ data | |||
| Communication Interface | Model 8212-USB Optical Adaptor | |||
| LCD | Dot-matrix 192×۶۴ monochrome | |||
| Over-range Indication | “OL” | |||
| Overload Protection | between E-S(P) and between E-H(C) terminals AC280V / 10 sec. | |||
| Applicable standards | IEC 61010-1 CAT III 300V, CAT IV 150V Pollution degree 2 IEC 61010-031, IEC 61557-1, 5, IEC 61326-1 (EMC), IEC 60529 (IP54) |
|||
| Power source | DC12V : sizeAA manganese dry battery (R6) × ۸ (Auto power off: approx. 5 minutes) |
|||
| Dimensions | ۱۶۷(L) × ۱۸۵(W) × ۸۹(D) mm | |||
| Weight | approx. 900g (including batteries) | |||
| Accessories | ۷۲۲۹A (Earth precision measurement), ۷۲۳۸A (Simplified measurement test leads), ۸۰۳۲ (Auxiliary earth spikes [2 spiks/set])×۲ sets (4 spikes in total), ۸۲۰۰-۰۴ (Cord reel [4 pcs])×۱ set, ۸۲۱۲-USB (USB adaptor with “KEW Report(Software)”), ۹۱۲۱ (Shoulder strap), ۹۱۲۵ (Carrying case), R6 × ۸, Instruction manual, Calibration certificate |
|||
| Optional | ۸۲۱۲-RS232C (RS232C adaptor with “KEW Report(Software)”) | |||
(*۱) Auxiliary earth resistance is 100Ω with Rk correction
(*۲) Depending on the measured Rg. Interval [a] between auxiliary earth spikes is 1.0 – 30.0m
(*۳) This instrument is NOT designed to measure line voltages on commercial powers.
